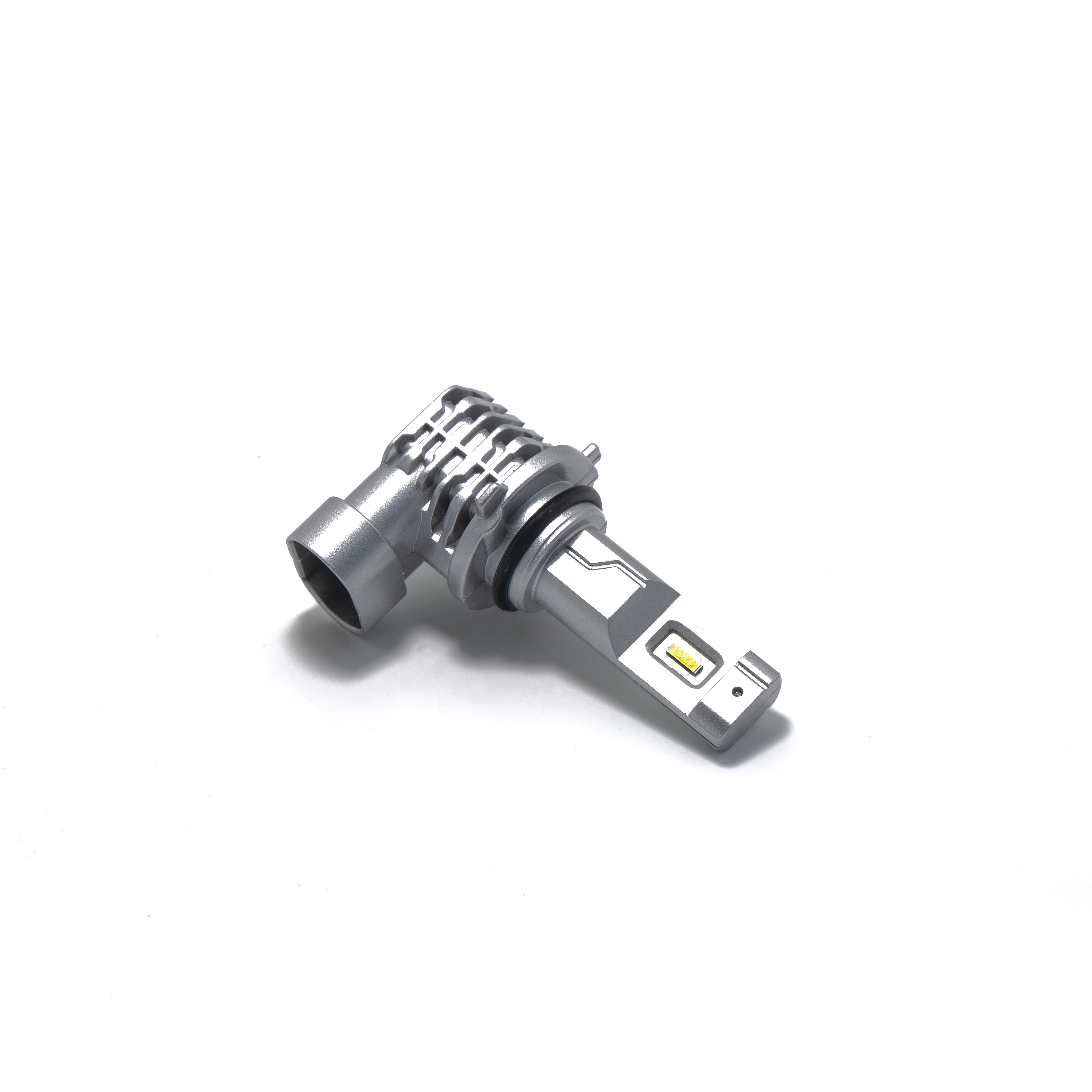

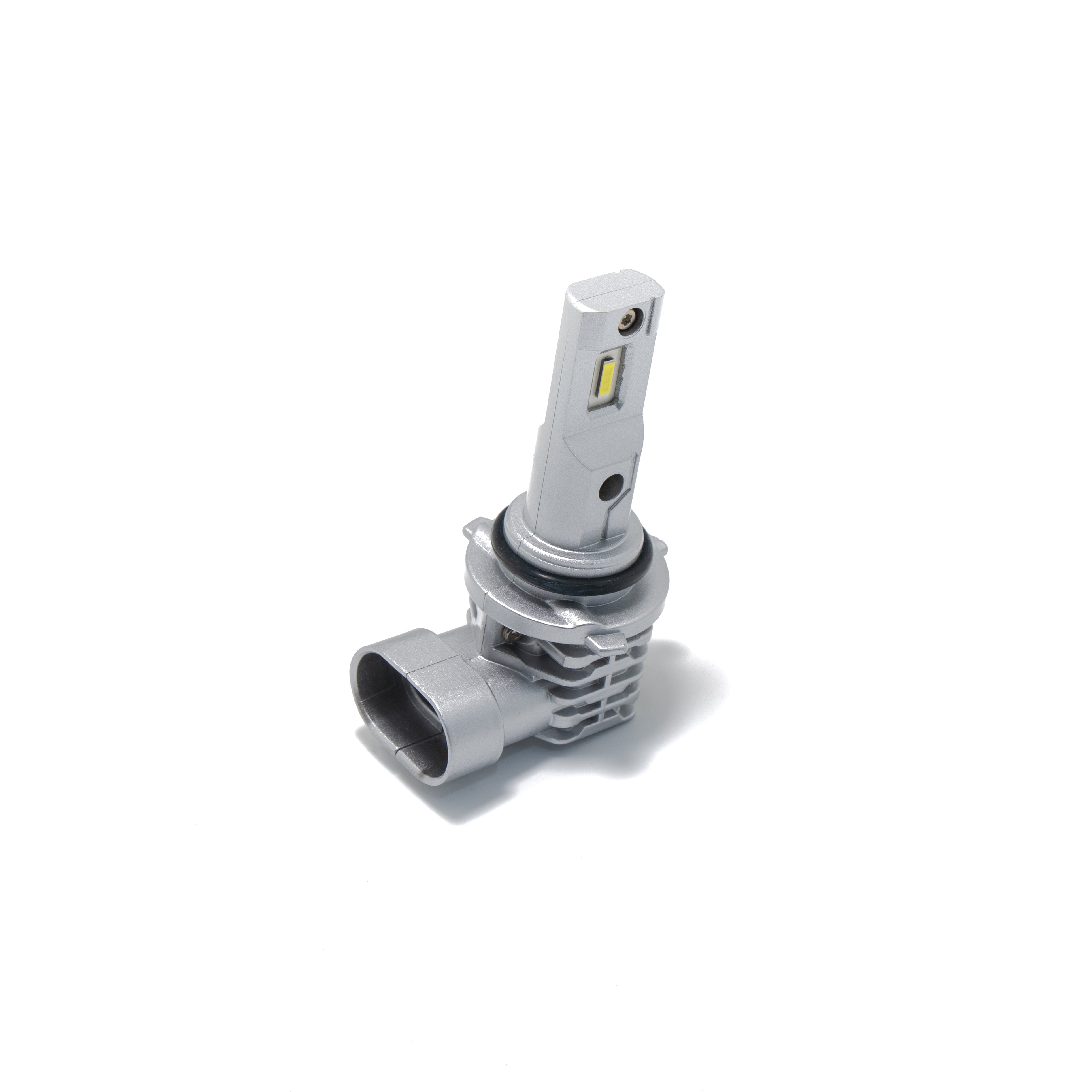

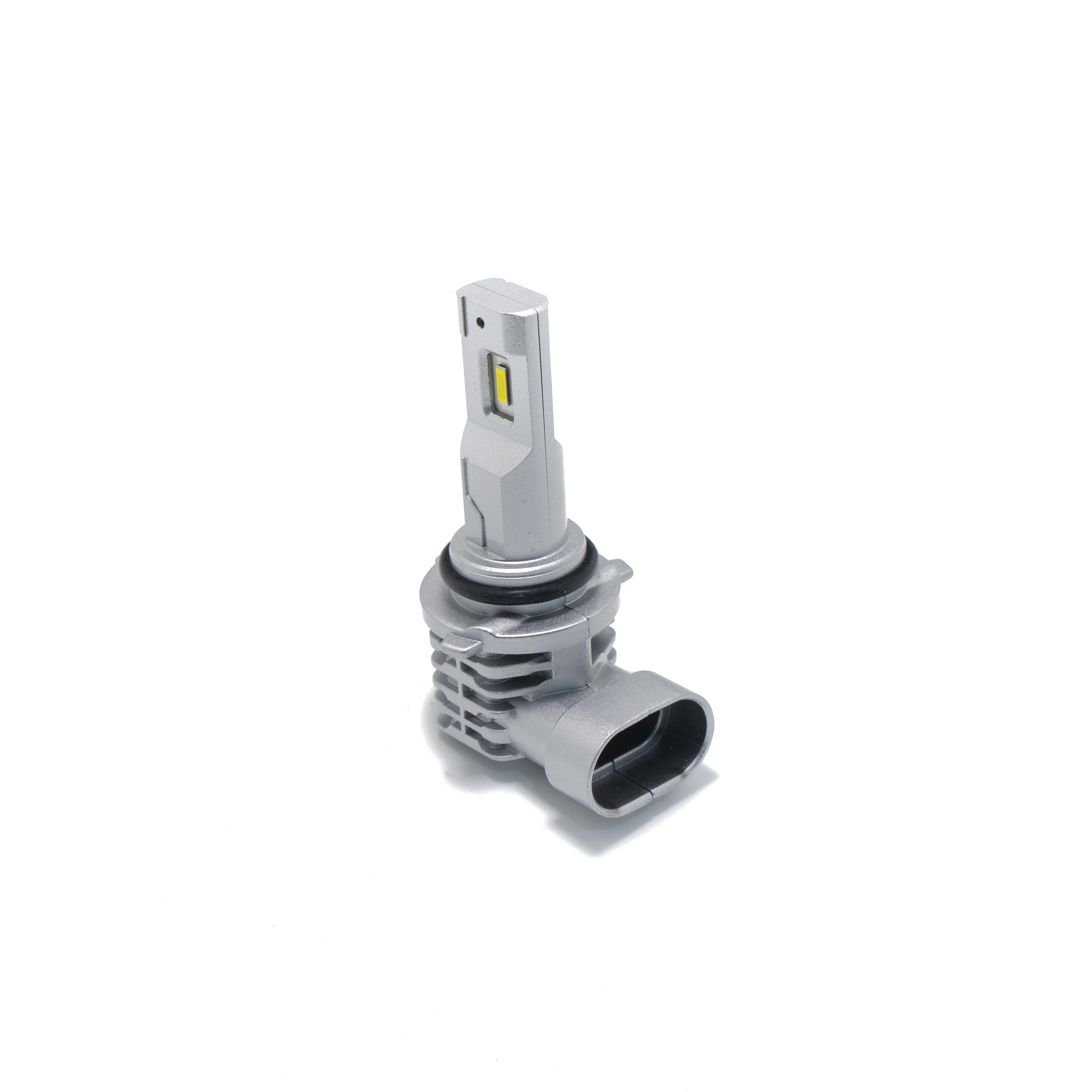

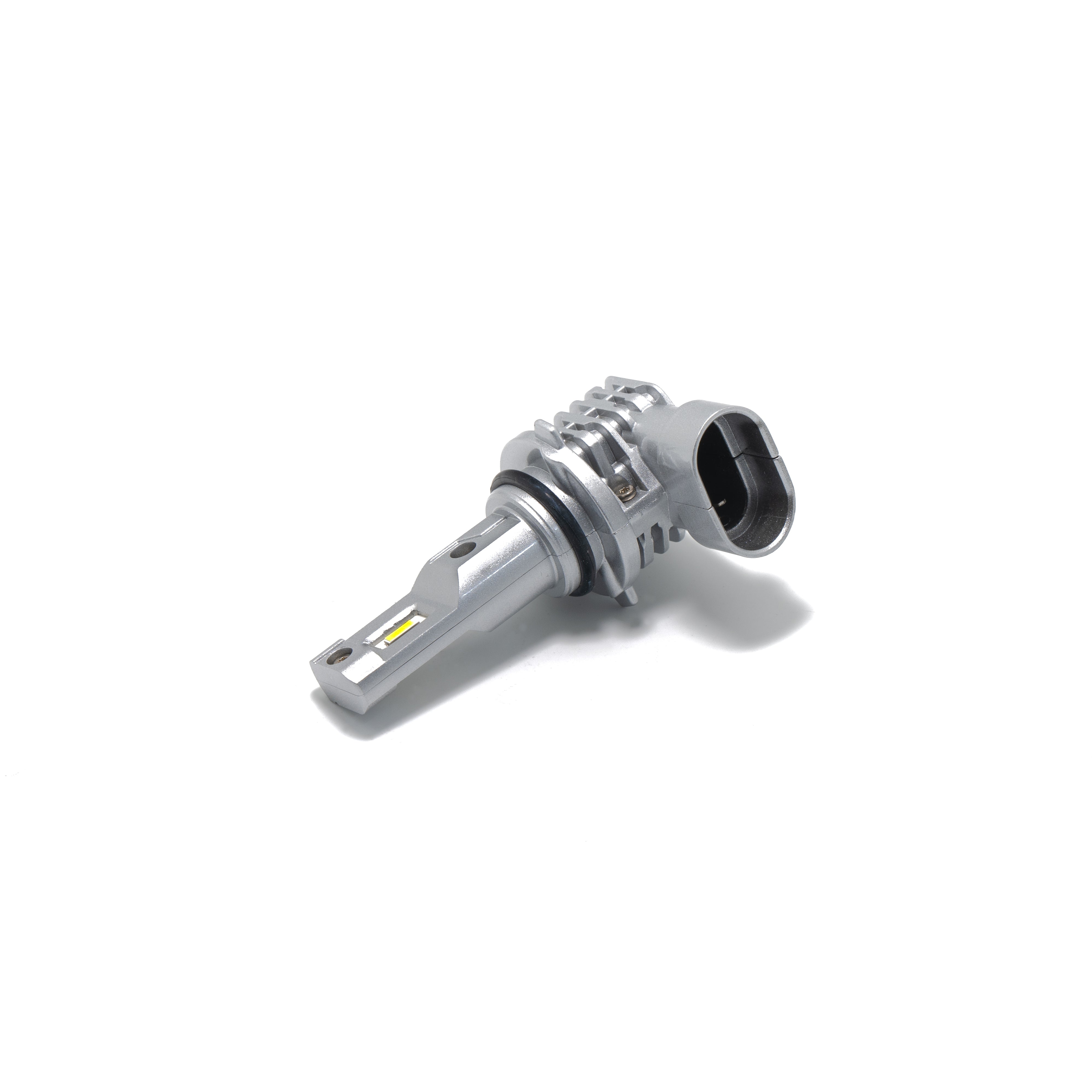

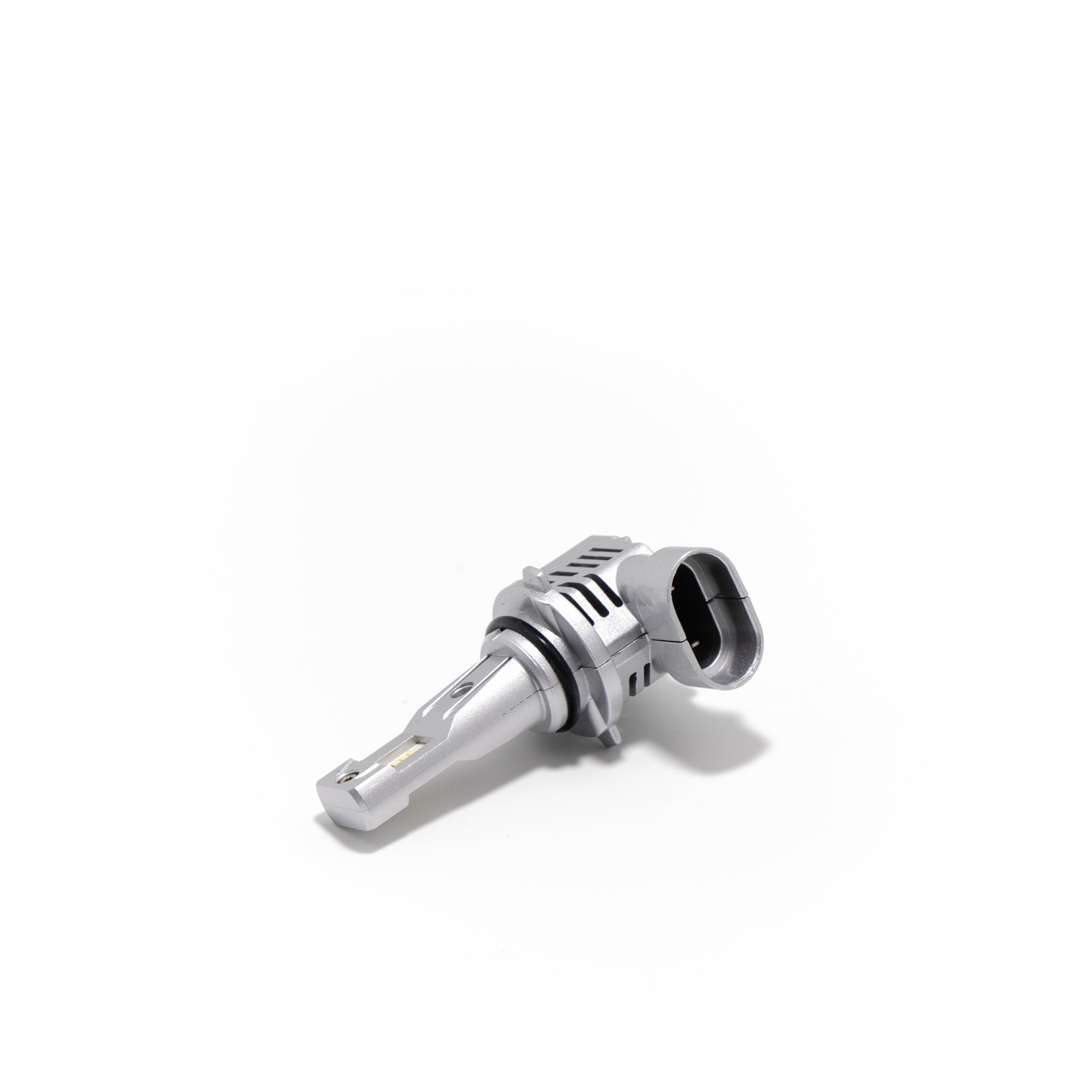

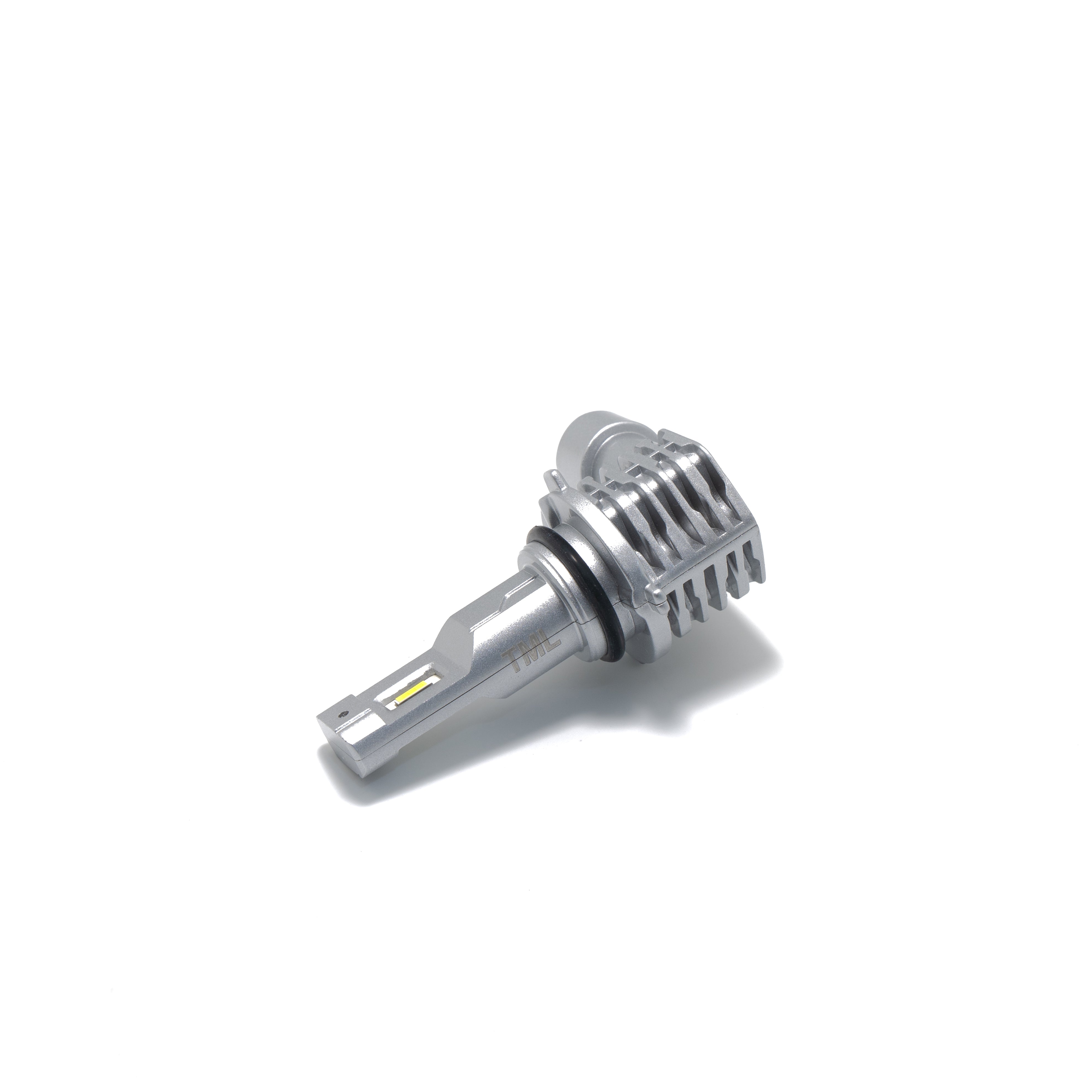

9006 - HEADLIGHTS

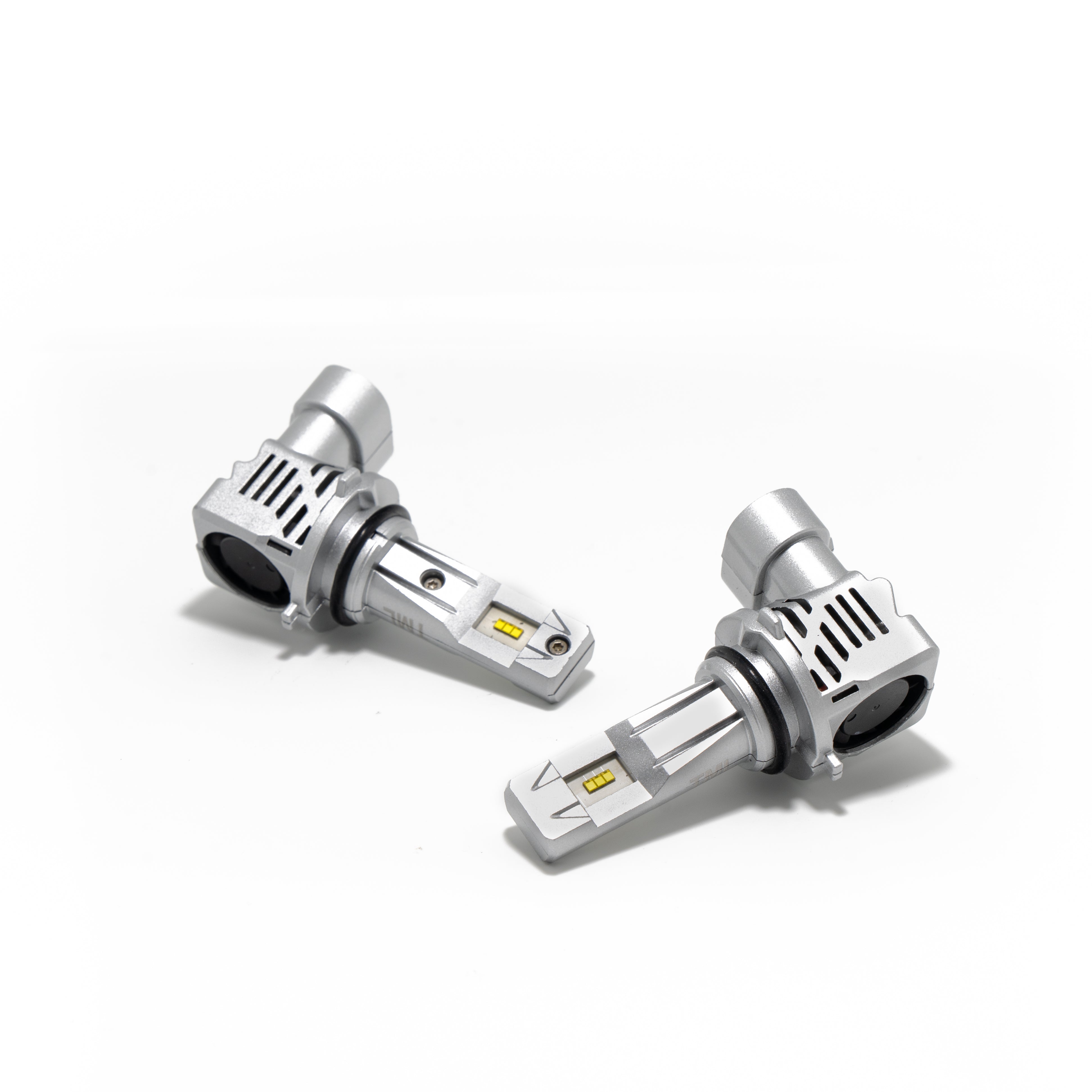

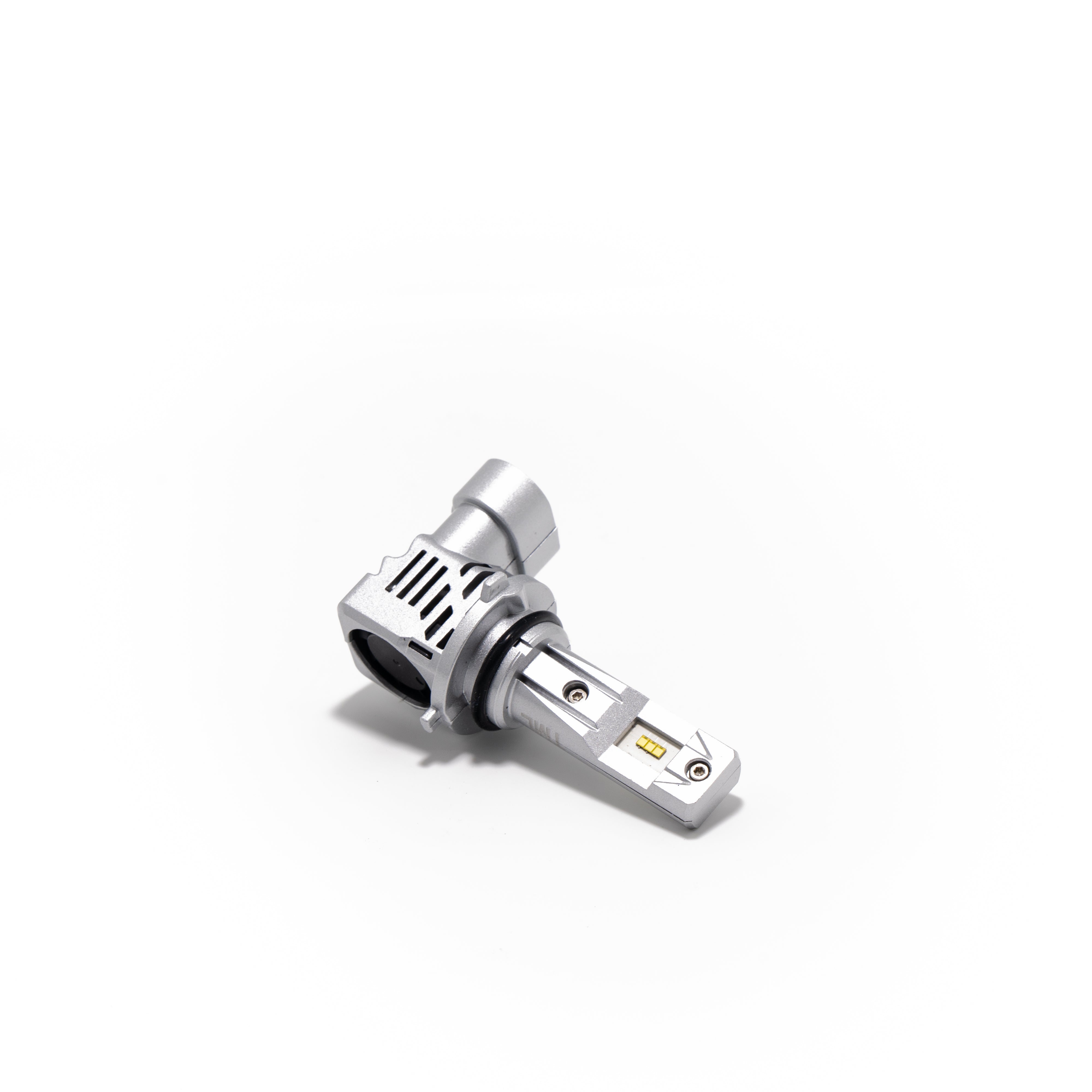

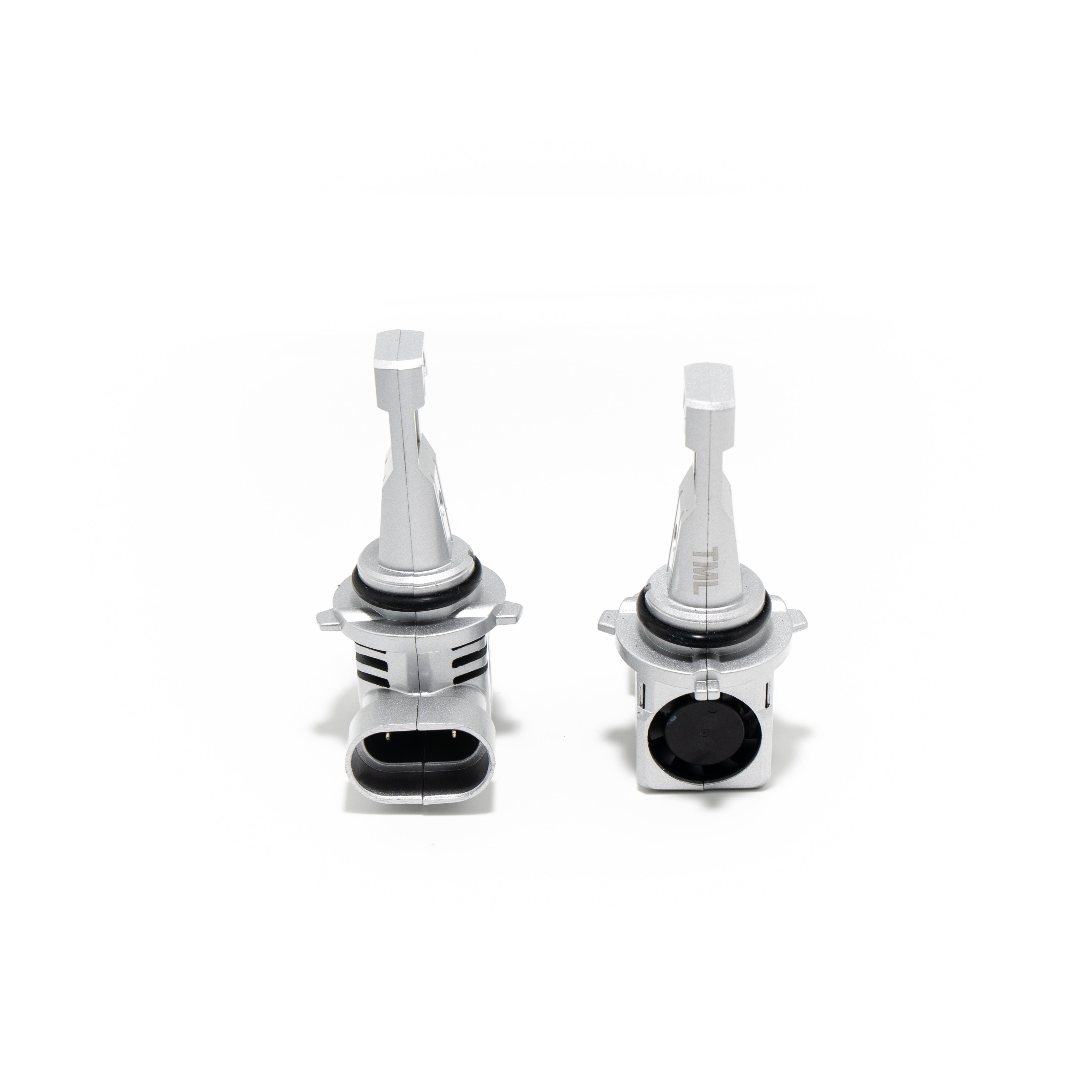

Stage 1 – Everyday Upgrade

Best for: Daily drivers wanting a clear, bright improvement over halogen.

Features:

• True 1:1 halogen size ratio for easy plug-and-play fitment
• Ultra-bright LED output for safer night driving
• Wider and more even beam pattern
• Reliable, efficient, and road-friendly brightness

Description:
Replace your dull halogen headlights with TML’s Stage 1 Premium LEDs. Designed for everyday use, these bulbs provide improved visibility, focus, and beam spread without excessive glare.

Stage 2 – Enhanced Brightness

Best for: Drivers seeking more intensity and sharper focus.

Features:

• 1:1 design for direct halogen replacement
• Equipped with genuine Philips LED chips
• Built-in cooling fan for better heat management
• Focused, high-intensity light beam
• Long-lasting, high-quality construction

Description:
The Stage 2 LED upgrade takes performance further. With superior brightness and beam precision, these bulbs deliver better visibility and longer lifespan thanks to efficient heat dissipation.

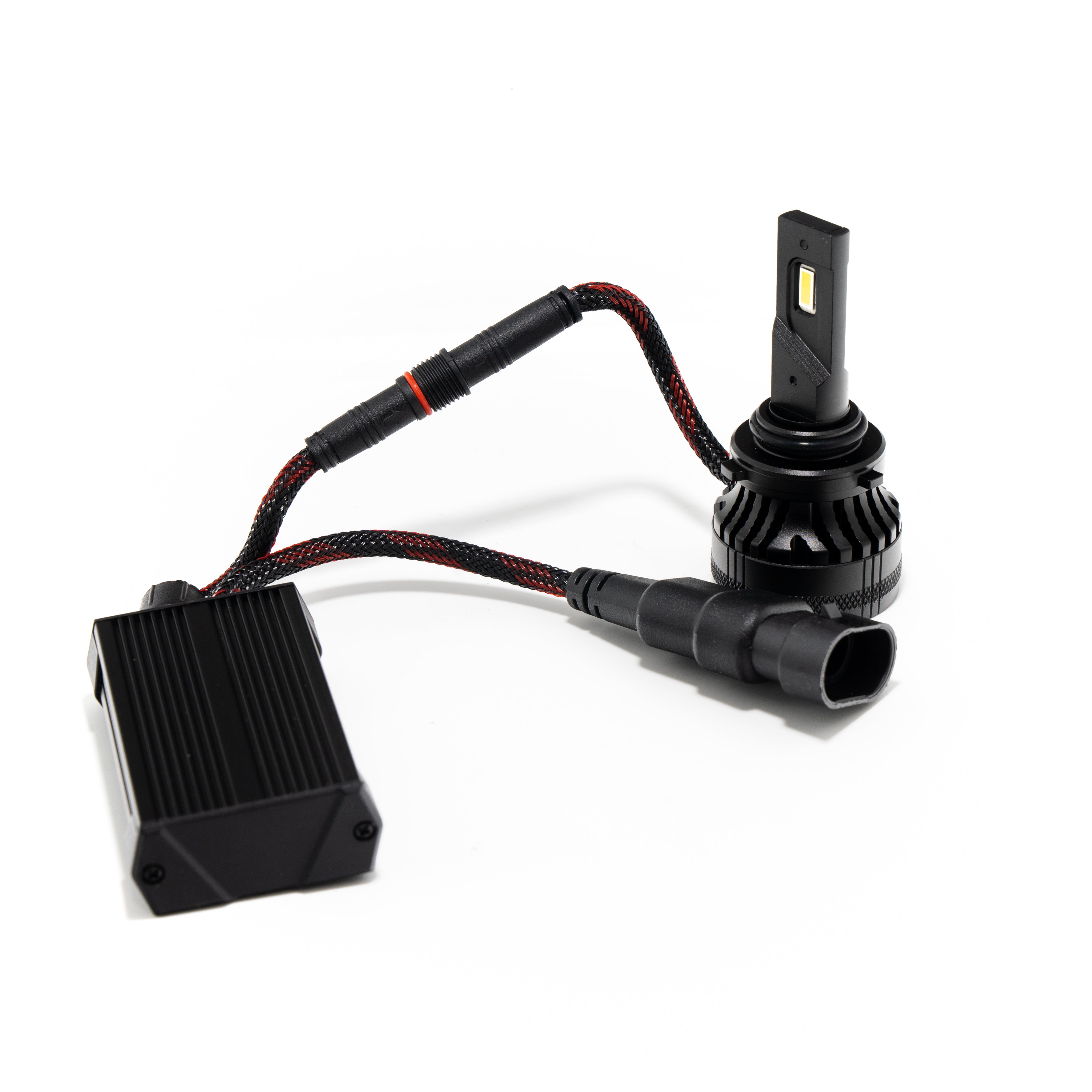

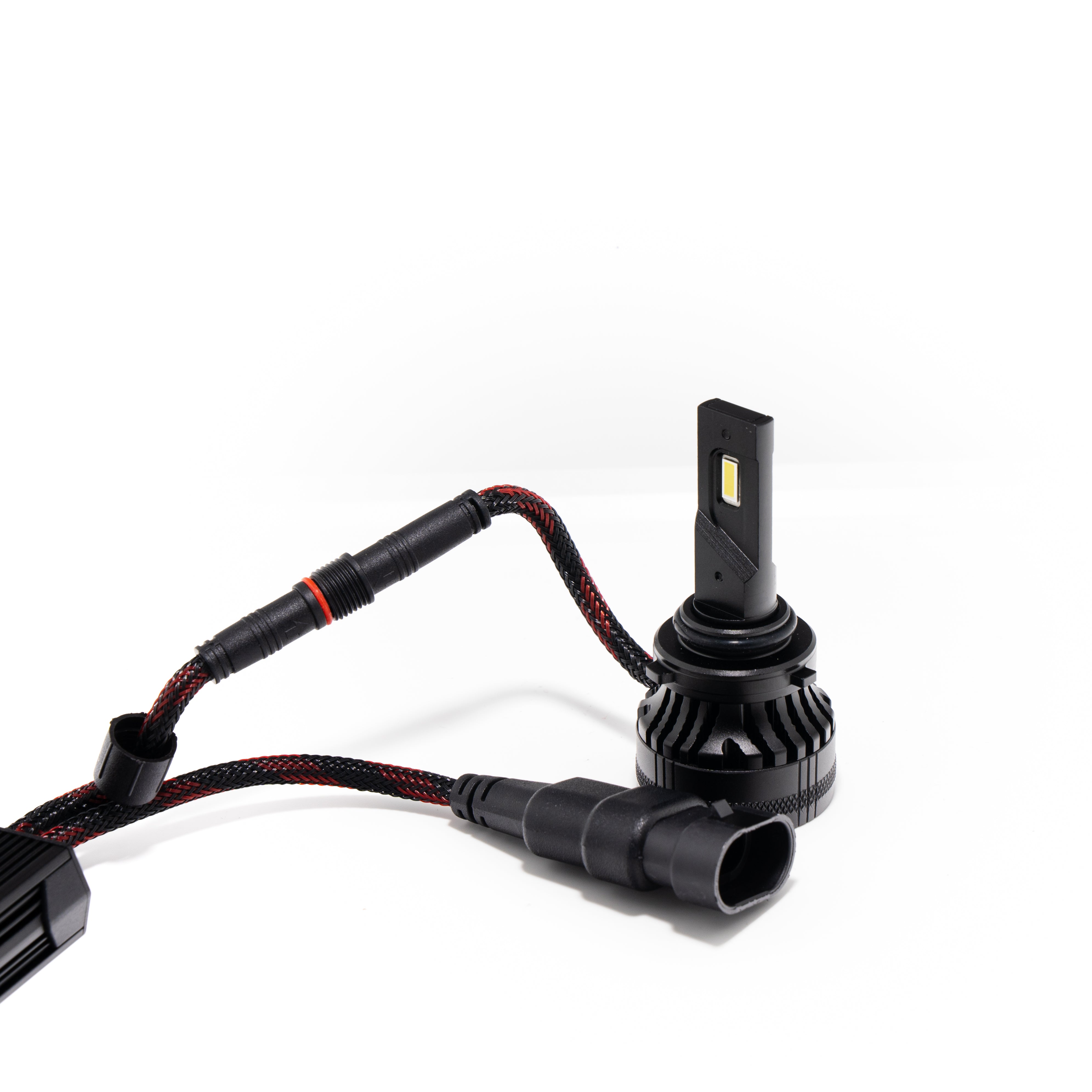

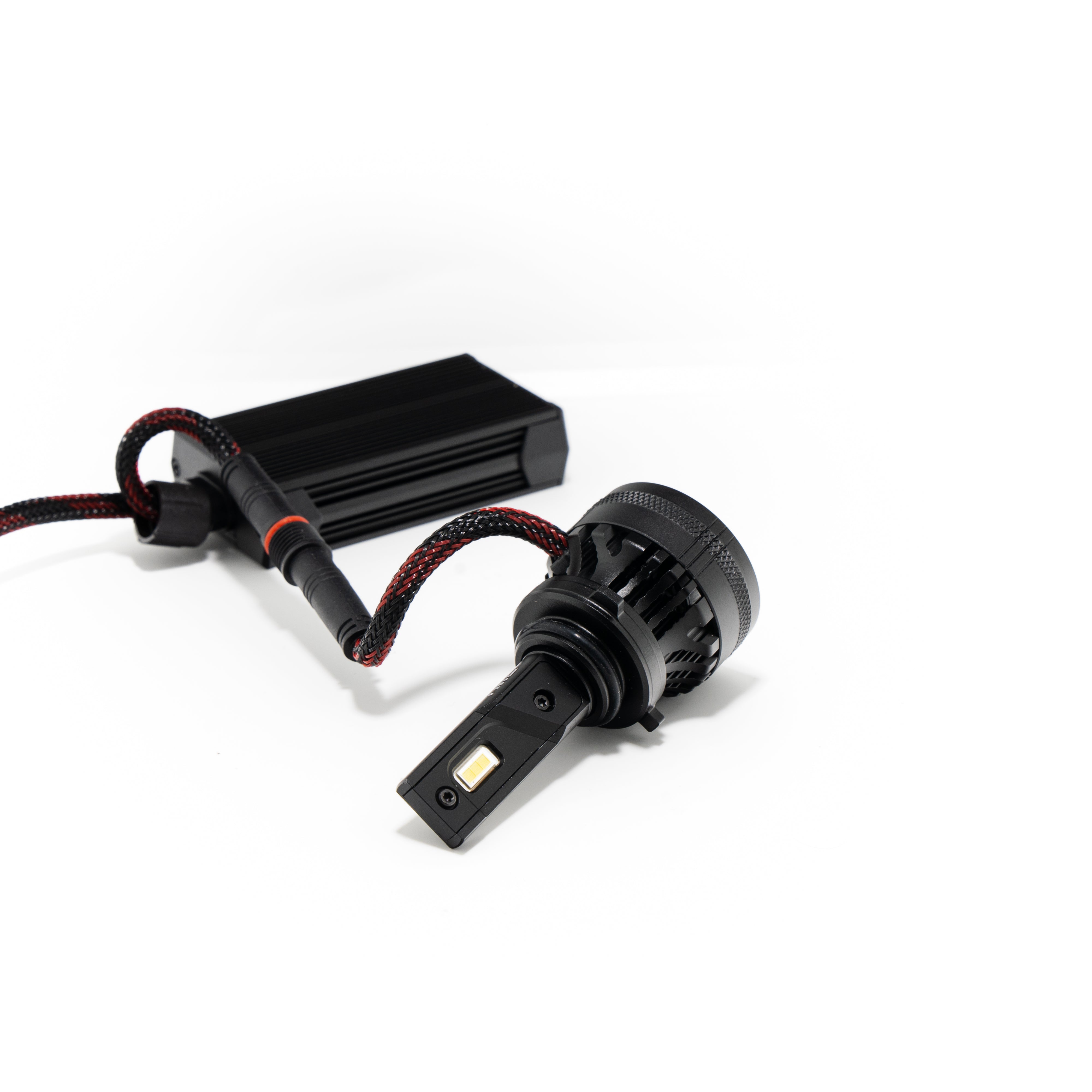

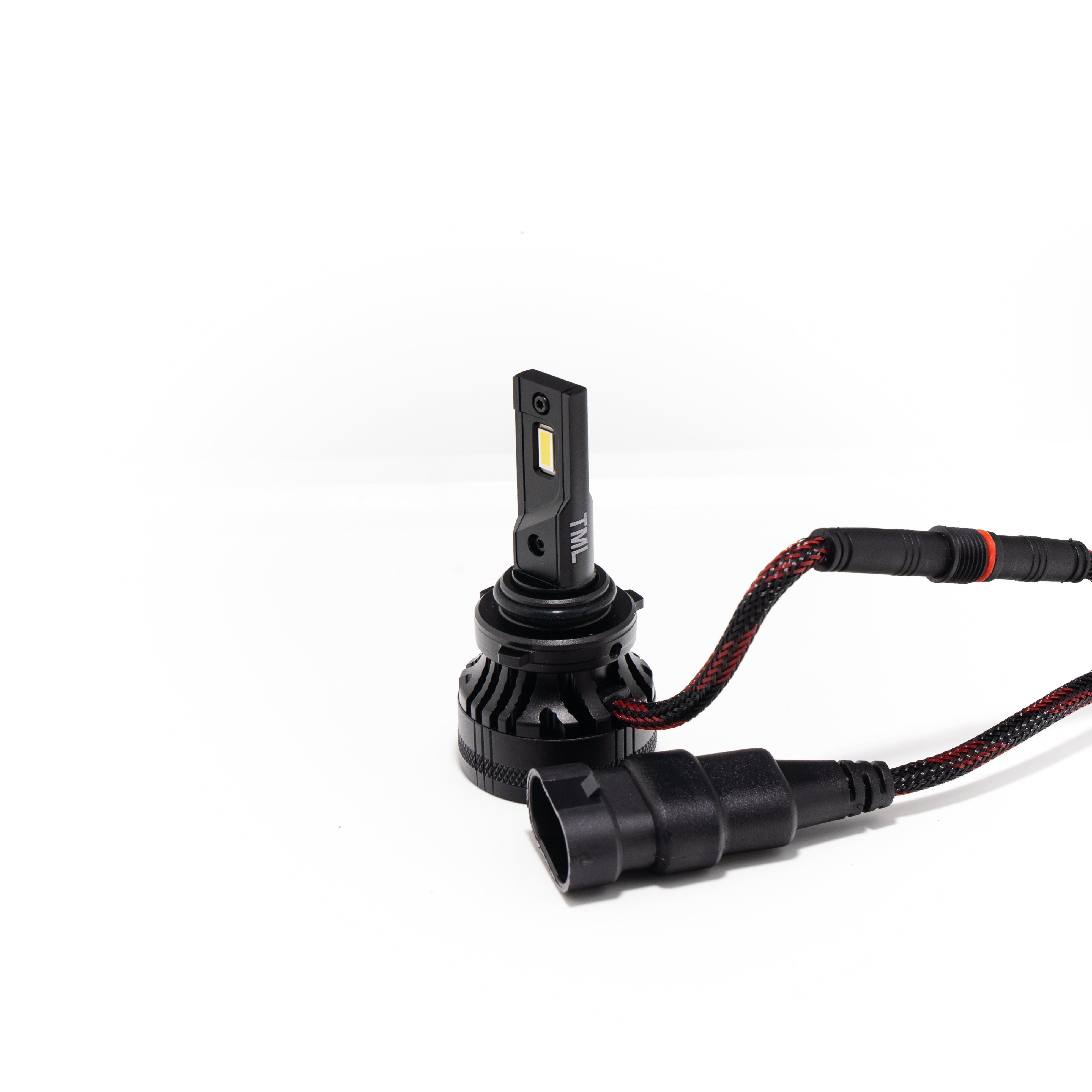

Stage 3 – Maximum Output (CANBUS)

Best for: Performance-focused drivers and show cars.

Features:

• Delivers up to 10,000 lumens of light
• Built-in CANBUS driver to prevent error codes
• Designed for maximum brightness and reliability
• Advanced cooling and premium-grade components
• Seamless fitment for CANBUS-equipped vehicles

Description:
The Stage 3 LED upgrade kit is designed for those who want the best of the best. Built to deliver intense light output while maintaining system compatibility and quality performance.

Specifications:

• Compatible Voltage: 9-32V (Stage 1 and 3), 12-30v (Stage 2)
• Lumen Rating: 3000LM (Stage 1), 6000LM (Stage 2), 10,000LM (Stage 3)
• Temperature (Colour): 6500k (Stage 2 and 3)
• LED: Custom TML LED chip (Stage 1 and 3), 12 Philips LED Z ES Chip (Stage 2)
• Power: 20W (Stage 1), 25W (Stage 2), 51W (Stage 3)
• Dimensions (L x W): 72mm x 14mm (Stage 1), 84mm x 12mm (Stage 2), 76mm x 15mm (Stage 3)
• E-Mark/ISO9001/RoHS Certified
• Not ADR/DOT Approved


Bulb cross-reference tags:

• 9006, HB4
